@rasenjs/react-native

React Native Fabric renderer for the Rasen reactive rendering framework.

Directly calls React Native's Fabric architecture APIs without using React.

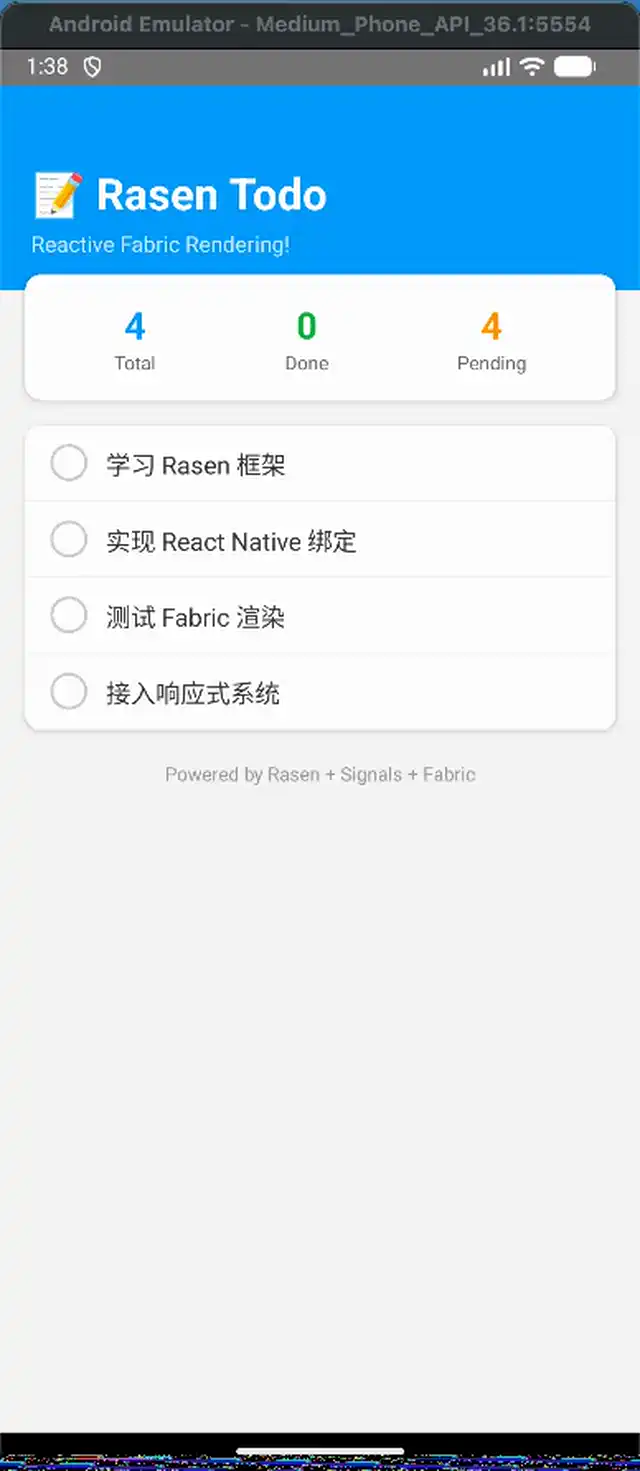

Preview

If the animation doesn't play in your viewer, open it on GitHub or a browser.

Installation

npm install @rasenjs/react-native @rasenjs/core

Overview

@rasenjs/react-native provides a way to build React Native apps using Rasen's reactive rendering model, bypassing React entirely and directly interfacing with the Fabric architecture.

Features

• Direct Fabric API - Binds to React Native's new architecture
• No React Dependency - Operates without React reconciler
• Reactive Driven - Seamlessly integrates with Rasen's reactive system
• Type Safe - Full TypeScript support
• High Performance - Direct native view manipulation, no virtual DOM

Prerequisites

• React Native >= 0.72.0 (New Architecture)
• Fabric renderer enabled

Quick Start

1. Setup Reactive Runtime

import { useReactiveRuntime } from '@rasenjs/reactive-vue'

useReactiveRuntime()

2. Create Components

import { view, text, touchableOpacity } from '@rasenjs/react-native'
import { ref, computed } from '@vue/reactivity'

const count = ref(0)

const Counter = view({
  style: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center'
  },
  children: [
    text({
      style: { fontSize: 48, fontWeight: 'bold' },
      children: count  // Reactive binding
    }),
    touchableOpacity({
      style: {
        backgroundColor: '#007AFF',
        padding: 16,
        borderRadius: 8,
        marginTop: 20
      },
      onPress: () => count.value++,
      children: [
        text({
          style: { color: 'white', fontSize: 18 },
          children: 'Increment'
        })
      ]
    })
  ]
})

3. Mount Application

import { AppRegistry } from 'react-native'
import { mount } from '@rasenjs/react-native'

AppRegistry.registerRunnable('MyApp', ({ rootTag }) => {
  mount(Counter, rootTag)
  return { run: () => {} }
})

Components

View

Container component with flexbox layout.

import { view } from '@rasenjs/react-native'

view({
  style: {
    flex: 1,
    flexDirection: 'row',
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: '#f5f5f5',
    padding: 20,
    gap: 10
  },
  children: [/* child components */]
})

Text

Text display component.

import { text } from '@rasenjs/react-native'

text({
  style: {
    fontSize: 16,
    fontWeight: 'bold',
    color: '#333',
    textAlign: 'center'
  },
  children: 'Hello World'
})

// Reactive text
text({
  children: computed(() => `Count: ${count.value}`)
})

TouchableOpacity

Touchable component with opacity feedback.

import { touchableOpacity, text } from '@rasenjs/react-native'

touchableOpacity({
  style: {
    backgroundColor: '#007AFF',
    padding: 12,
    borderRadius: 8
  },
  onPress: () => console.log('Pressed!'),
  activeOpacity: 0.7,
  children: [
    text({ children: 'Press Me' })
  ]
})

TextInput

Text input component.

import { textInput } from '@rasenjs/react-native'

const inputValue = ref('')

textInput({
  style: {
    borderWidth: 1,
    borderColor: '#ccc',
    padding: 12,
    borderRadius: 8
  },
  value: inputValue,
  placeholder: 'Enter text...',
  onChangeText: (text) => inputValue.value = text
})

ScrollView

Scrollable container.

import { scrollView, view } from '@rasenjs/react-native'

scrollView({
  style: { flex: 1 },
  contentContainerStyle: { padding: 20 },
  children: [
    // Scrollable content
  ]
})


Image display component.

import { image } from '@rasenjs/react-native'

image({
  source: { uri: 'https://example.com/image.png' },
  style: { width: 200, height: 200 },
  resizeMode: 'cover'
})

Pressable

Pressable with pressed state, function styles, and Android ripple support.

import { pressable, text } from '@rasenjs/react-native'

pressable({
  style: ({ pressed }) => ({
    backgroundColor: pressed ? '#007AFF' : '#ccc',
    opacity: pressed ? 0.8 : 1
  }),
  onPress: () => console.log('Pressed!'),
  android_ripple: { color: '#ffffff' },
  children: [
    text({ children: 'Press Me' })
  ]
})

Button

Native-style button (Android: filled background + uppercase title; iOS: tinted text).

import { button } from '@rasenjs/react-native'

button({
  title: 'Submit',
  color: '#007AFF',
  onPress: () => console.log('Submitted!'),
  disabled: false
})

TouchableHighlight / TouchableWithoutFeedback

import { touchableHighlight, touchableWithoutFeedback, text } from '@rasenjs/react-native'

touchableHighlight({
  underlayColor: '#ddd',
  activeOpacity: 0.85,
  onPress: () => console.log('Highlighted!'),
  children: [text({ children: 'Highlight' })]
})

touchableWithoutFeedback({
  onPress: () => console.log('No feedback'),
  children: [text({ children: 'Plain' })]
})

SafeAreaView

Safe-area container (iOS notch/pill insets).

import { safeAreaView, text } from '@rasenjs/react-native'

safeAreaView({
  style: { flex: 1 },
  children: [text({ children: 'Safe content' })]
})

ImageBackground

View with an absolute-fill background image and layered children.

import { imageBackground, text } from '@rasenjs/react-native'

imageBackground({
  source: { uri: 'https://example.com/bg.png' },
  style: { flex: 1 },
  imageStyle: { opacity: 0.5 },
  children: [text({ children: 'Overlay' })]
})

KeyboardAvoidingView

Container that avoids the on-screen keyboard (padding behavior).

import { keyboardAvoidingView, textInput } from '@rasenjs/react-native'

keyboardAvoidingView({
  behavior: 'padding',
  keyboardVerticalOffset: 60,
  children: [textInput({ placeholder: 'Type here' })]
})

StatusBar

Configurator component (pushes an entry on mount, pops on unmount).

import { statusBar } from '@rasenjs/react-native'

statusBar({
  barStyle: 'light-content',
  backgroundColor: '#000000'
})

FlatList

Reactive scrollable list.

import { flatList, text } from '@rasenjs/react-native'
import { ref } from '@vue/reactivity'

const todos = ref([
  { id: 1, title: 'Learn Rasen' },
  { id: 2, title: 'Build an app' }
])

flatList({
  data: todos,
  keyExtractor: (item) => String(item.id),
  renderItem: ({ item }) => text({ children: item.title }),
  ListHeaderComponent: () => text({ children: 'TODO' }),
  ItemSeparatorComponent: () => text({ children: '\n' }),
  onEndReached: () => console.log('Reached the end!')
})

Testing

The package ships a Vitest-based test infrastructure (mirroring rn-dom and vue-rn):

yarn workspace @rasenjs/react-native test

• vitest.config.ts — aliases @rasenjs/rn-dom to its source
• src/__tests__/setup.ts — mocks react-native, ReactNativePrivateInterface, @rasenjs/rn-dom/elements, and the Fabric UIManager; installs the Vue reactive runtime
• src/__tests__/render-helper.ts — mountComponent() + press-event helpers (firePress, firePressIn, firePressOut) for asserting on the Fabric node tree

import { mountComponent, nodeProps, firePress } from '../__tests__/render-helper'

const { root } = mountComponent((p) => Pressable({ onPress, ...p }))
firePress(root)
expect(onPress).toHaveBeenCalledTimes(1)

Metro Plugin

@rasenjs/react-native/metro wraps all the Metro config a Rasen RN app needs (JSX runtime redirection + single-instance resolution) into one line:

// metro.config.js
const { getDefaultConfig } = require('@react-native/metro-config')
const { withRasenRN } = require('@rasenjs/react-native/metro')

module.exports = withRasenRN(getDefaultConfig(__dirname))

What it does:

• Redirects react/jsx-runtime / react/jsx-dev-runtime to @rasenjs/react-native/jsx-runtime (Rasen renders without React)
• Forces a single module instance for @rasenjs/* packages (avoids the import/require split that would duplicate module-level state)
• Adds the rasen package roots to watchFolders and mjs to sourceExts

Babel Plugin (Metro HMR)

@rasenjs/react-native/babel injects rasen's HMR runtime calls into component files for Metro (which uses module.hot.accept(), unlike Vite):

// babel.config.js
module.exports = {
  presets: ['module:@react-native/babel-preset'],
  plugins: [
    ['@rasenjs/react-native/babel', { hmr: true }],
  ],
}

Only files that call com() (rasen's component wrapper) are injected, so plain utility modules are untouched.

DevTools

A lightweight remote debugger for Rasen RN apps (node tree + render performance), served over socket.io.

# 1. Start the devtools server (default port 8099)
npx rasen-devtools
# PORT=9000 npx rasen-devtools

# 2. In the app (__DEV__ only), before registerApp():
if (__DEV__) {
  const { connectRasenDevTools } = require('@rasenjs/react-native/devtools')
  connectRasenDevTools() // host: http://localhost (iOS sim) / 10.0.2.2 (Android emu)
}

# 3. Open http://localhost:8099/ in a browser

Features:

• Node Tree — the live rn-dom node tree (tag, testID, style keys)
• Render Performance — per-tag render count / total / max time

The instrumentation hook is installed by connectRasenDevTools(); element() calls it around each mount with zero overhead when the devtools aren't connected.

Reactive Props

All props support reactive values:

const isActive = ref(false)
const count = ref(0)

view({
  style: computed(() => ({
    backgroundColor: isActive.value ? '#007AFF' : '#ccc',
    opacity: isActive.value ? 1 : 0.5
  })),
  children: [
    text({
      children: computed(() => `Count: ${count.value}`)
    })
  ]
})

Style Props

React Native style properties are fully supported:

{
  // Layout
  flex: 1,
  flexDirection: 'row' | 'column',
  justifyContent: 'flex-start' | 'center' | 'flex-end' | 'space-between',
  alignItems: 'flex-start' | 'center' | 'flex-end' | 'stretch',
  gap: 10,

  // Spacing
  padding: 20,
  paddingHorizontal: 10,
  paddingVertical: 15,
  margin: 10,

  // Sizing
  width: 100,
  height: 100,
  minWidth: 50,
  maxHeight: 200,

  // Visual
  backgroundColor: '#fff',
  borderRadius: 8,
  borderWidth: 1,
  borderColor: '#ccc',
  opacity: 0.5,

  // Position
  position: 'relative' | 'absolute',
  top: 0,
  left: 0,
  right: 0,
  bottom: 0,
  zIndex: 10
}

Architecture

Rasen bypasses React entirely and directly interfaces with React Native's Fabric architecture at the lowest available JavaScript layer.

How React Native Works (with React)

┌─────────────────────────────────────────────────────────────┐
│                     React Application                        │
│                  (JSX → React Elements)                      │
├─────────────────────────────────────────────────────────────┤
│                    React Reconciler                          │
│              (Fiber, Diff, Scheduling)                       │
├─────────────────────────────────────────────────────────────┤
│                      ReactFabric                             │
│         (Compiled bundle with HostConfig impl)               │
│    ┌─────────────────────────────────────────────────────┐  │
│    │  Internally uses:                                    │  │
│    │  - nativeFabricUIManager (C++ bindings)             │  │
│    │  - ReactNativePrivateInterface (JS utilities)       │  │
│    └─────────────────────────────────────────────────────┘  │
├─────────────────────────────────────────────────────────────┤
│                   Fabric C++ Core                            │
│       (Shadow Tree, Yoga Layout, Native Views)               │
└─────────────────────────────────────────────────────────────┘

How Rasen Works (without React)

┌─────────────────────────────────────────────────────────────┐
│                   Rasen Application                          │
│             (Component Functions → Instances)                │
├─────────────────────────────────────────────────────────────┤
│  @rasenjs/reactive-*    │           @rasenjs/react-native   │
│  (Signal System)        │           (Fabric Renderer)       │
│                         │                                    │
│  - signal-polyfill      │    ┌──────────────────────────┐   │
│  - @preact/signals      │    │ Direct API Access:       │   │
│  - Vue reactivity       │    │                          │   │
│                         │    │ nativeFabricUIManager    │   │
│                         │    │   - createNode()         │   │
│                         │    │   - appendChild()        │   │
│                         │    │   - cloneNodeWithNewProps│   │
│                         │    │   - setNativeProps()     │   │
│                         │    │   - completeRoot()       │   │
│                         │    │                          │   │
│                         │    │ ReactNativePrivateInterface│  │
│                         │    │   - ViewConfigRegistry   │   │
│                         │    │   - createAttributePayload│  │
│                         │    │   - createPublicInstance │   │
│                         │    └──────────────────────────┘   │
├─────────────────────────────────────────────────────────────┤
│                   Fabric C++ Core                            │
│       (Shadow Tree, Yoga Layout, Native Views)               │
└─────────────────────────────────────────────────────────────┘

Why This Approach?

Layer	React's Usage	Rasen's Access	Notes
ReactFabric	Entry point (render())	❌ Cannot use	Requires React Elements
ReactFiberConfigFabric	Internal HostConfig	❌ Not exported	Compiled into ReactFabric bundle
nativeFabricUIManager	Used internally	✅ Direct access	Global C++ binding
ReactNativePrivateInterface	Used internally	✅ Direct access	Exported JS utilities

Key insight: React's HostConfig implementation (ReactFiberConfigFabric.js) is compiled into ReactFabric-prod.js and not separately exported. We access the same underlying APIs that React uses:

• nativeFabricUIManager - C++ bindings injected as global variable
• ReactNativePrivateInterface - JS utility module from react-native

This allows Rasen to drive native UI updates using Signal-based reactivity instead of React's reconciler.

Notes

• This package uses AppRegistry.registerRunnable() instead of registerComponent()
• UI rendering is managed by Rasen's render context
• The current implementation requires native module support for full Fabric integration
• See examples/react-native for a complete example

License

MIT
